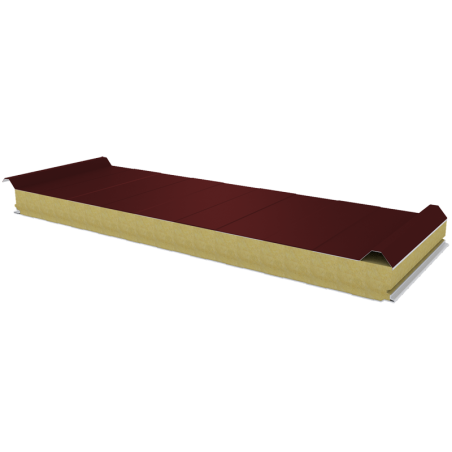

PWD-W - 140 MM, Roof panels, mineral wool
Roof sandwich panel, the core is mineral wool.
Security policy
Delivery
Terms and conditions
Construction:
- External and internal cladding are made of galvanized steel sheet 0.5 mm or 0.6 mm, covered with metallic and organic coatings.
- Cladding profiles: micro-wave V, micro-trapezoid T.
- The core of the board is made of mineral wool with a density of 120 kg / m3, combined with the facing with two-component polyurethane adhesive.
- Modular width 1050 mm.
Editing:
- The tongue-and-groove panel lock allows for easy and quick assembly, at the same time because of its tightness acts as a good, refractory insulator.
Application of gr. 140 mm:
Roof sandwich panels with a 140 mm thick mineral wool core are intended for use as covering industrial and warehouse halls.
50410056
Data sheet
- Core thickness [mm] -
- 80
- Density of the core [kg/m³] -
- 100
- Module [mm] -
- 1150
- Maximum length [mm] -
- 18000
- Minimum length [mm] -
- 2000
- Weight [kg/m²] -
- 16,85
- Type cladding -
- steel sheet / steel sheet
- Top cladding [mm] -
- 0,5
- Lower cladding [mm] -
- 0,5
- Heat transfer coefficient U (W/m²K) -
- 0,54
- Impact of external fire -
- Broof (t1)
- Fire spread rate -
- NRO
- Anticorrosive coatings -
- polyester gloss / matt, polyurethane, PVDF, zinc, aluzynk
