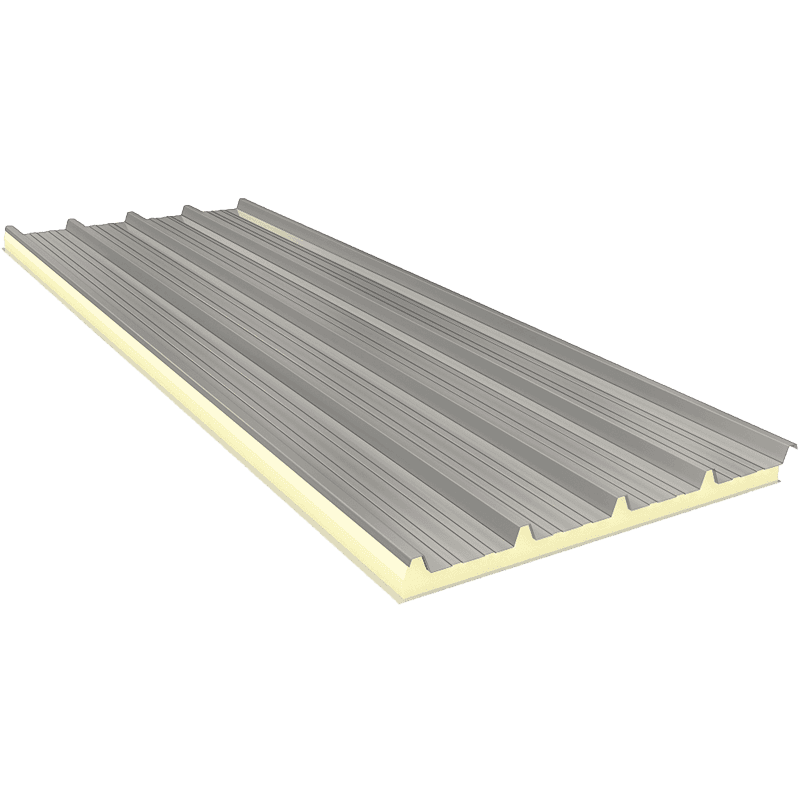

AGROPIR 100 mm, roof sandwich panels
  • AGROPIR 100 mm, roof sandwich panels

AGROPIR 100 mm, roof sandwich panels

zł99.00
Tax excluded

AGRO sandwich panel, PUR or PIR foam core, for roofing.

Upper cladding - select the thickness
Lower cladding - select the thickness
Standard RAL colors - choose one
Quantity
Available



Privacy policy.



Shipping methods, forms of transport.



Terms and conditions.

Construction:

- The top cladding is made of galvanized steel sheet, coated with 25 µm PE (polyethylene).
- The bottom cladding is Fiberglass PRFV (fiberglass reinforced with polyester resin).
- The core of the sandwich panel is made of hard PIR (Polyisocyanurate) foam with excellent thermal insulation parameters and increased fire resistance.
- Modular width 1000 mm.

Installation:

- Easy and fast thanks to the labyrinth lock, which also acts as a good insulator.

Use of 100 mm thickness:

This type of sandwich panels is an excellent material for making roofs for piggeries, - all heated rooms and cold rooms. It is a very good insulation material and for renovation of roofing made of asbestos. Fiberglass effectively increases the life of the panels, which is why it is recommended in a particularly aggressive chemical environment, exposed to the effects of urine, ammonia and bacteria.

50 410 011
10000 Items

Data sheet

Core thickness [mm] -
100
Density of the core [kg/m2] -
38
Module [mm] -
1000
Maximum length [mm] -
14000
Minimum length [mm] -
2100
Weight [kg/m2] -
9,70
Type cladding -
steel sheet / plain aluminum foil
Top cladding [mm] -
0,5
Lower cladding [mm] -
Soft covering (aluminum foil)
Heat transfer coefficient U (W/m2K) -
0,19
